Price: ₹1,000 - ₹444.00
(as of Apr 27, 2026 00:08:52 UTC – Details)

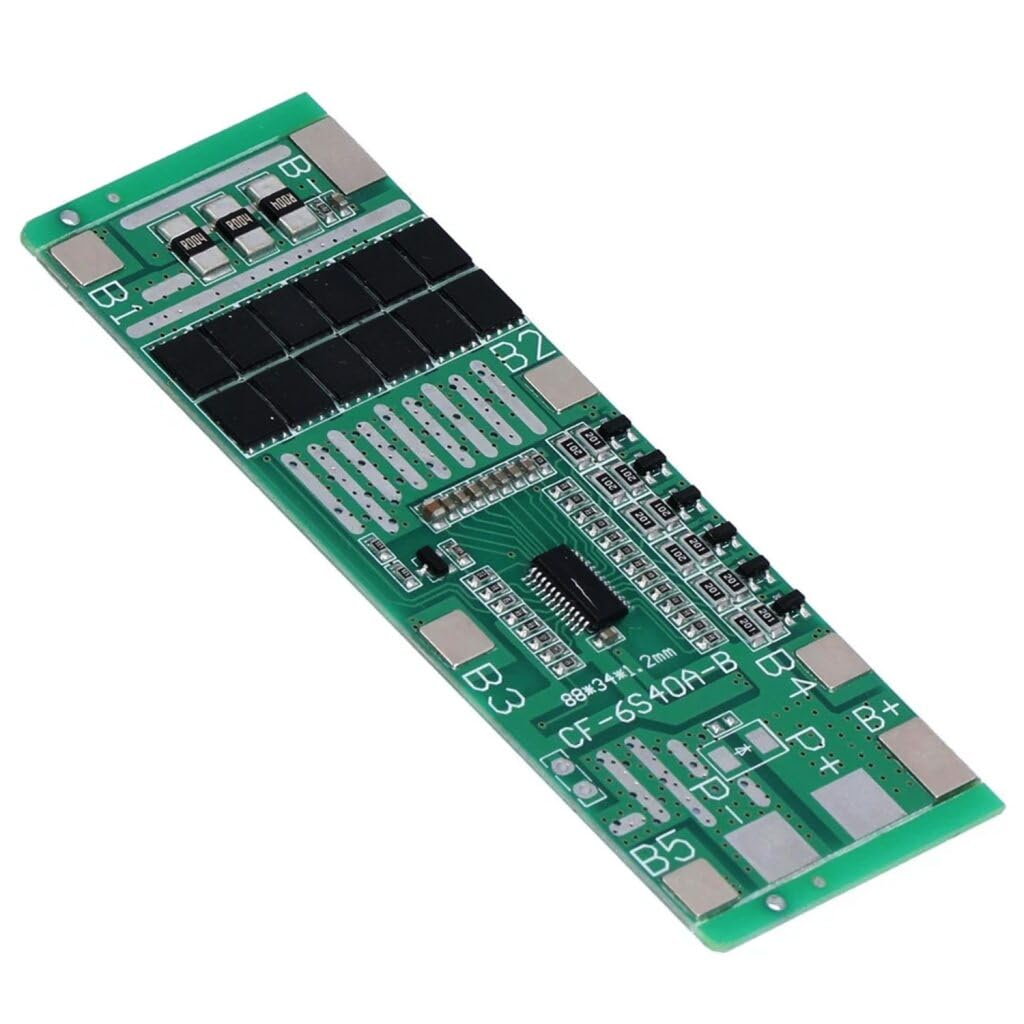

The amiciSolar 24V 6S 40A BMS Protection Board is a high-performance Battery Management System designed to protect and optimize 6-cell lithium-ion battery packs, including 18650 and 21700 cells. With a 40A continuous discharge capacity and up to 75A peak protection, this BMS is built for demanding applications like solar lighting systems, e-bikes, power tools, and energy storage projects.
Equipped with active cell balancing technology, it ensures cells remain balanced within ±30mV accuracy, with a 41mA balancing current that activates at 4.125V. The system stops balancing once cells are equalized, preventing unnecessary energy loss and extending battery lifespan.

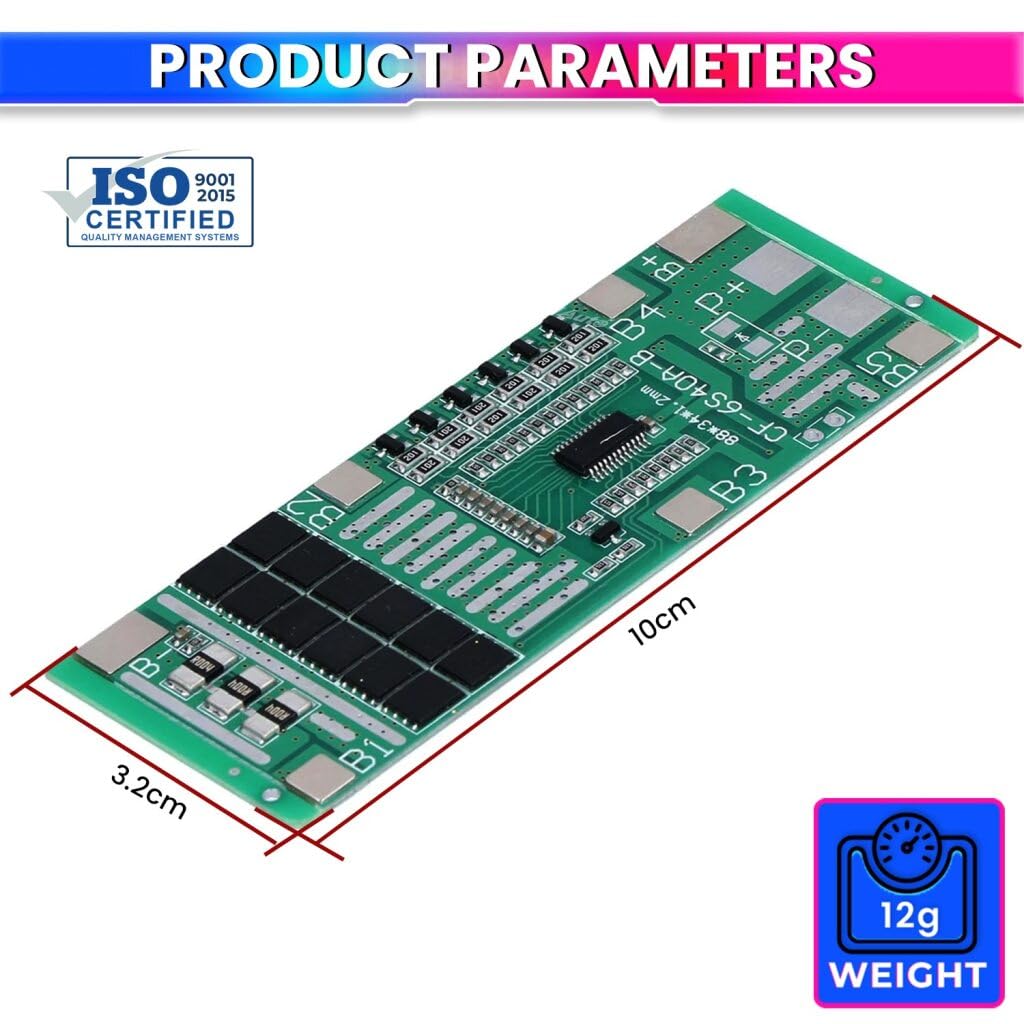

Technical Specification Maximum discharge current: 40A.
Current discharge current: 70A.
Charging voltage: 25.5V.
Maximum charging current: 40A.
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 1.0±0.5S
Overcharge voltage: 4.15 ± 0.05 V.
Cell balance detection voltage: 4.125±0.025V
Cell balance release voltage: 4.125±0.05V
Cell equilibrium current: 41±5V
Over-discharge detection voltage: 2.7±0.1V
Over-discharge detection delay: 1.0±0.5s
Over-discharge voltage: 3.0 ± 0.1 V.
Overcurrent detection voltage: 100 mV
Overcurrent detection delay: 1±0,
Overcurrent protection current: 75±5A
Over current protection condition: disconnect the load
Short circuit protection conditions: external load short circuit
Short circuit detection delay: 250uS Short circuit protection condition: disconnect the negative switch.
Internal resistance of the main circuit line: ≤20 mΩ.
Working current: ≤40uA.
Quiescent current (when the deep discharged): ≤10uA.
Temperature range: -30-80°C.
Why You Need This Product: Essential for DIY solar setups, energy storage systems, e-bikes, and lithium projects—protects against overcharge, over-discharge, short circuits, and overloads, ensuring safe and long-lasting battery operation.
Heavy-Duty 40A Continuous Protection: Built to handle 40A continuous discharge current and 70–75A peak protection, making it ideal for solar lighting systems, e-bikes, portable power, and industrial applications.
Optimized 6S (24V) Design: Specifically designed for 6-cell lithium-ion battery packs (18650, 21700, etc.), ensuring stable 24V performance with reliable protection and balancing.
Active Cell Balancing Technology: Automatically balances cell voltage differences with ±30mV precision, improving efficiency, maximizing performance, and extending overall battery life.
Precision Balancing Performance: Provides 41mA balancing current, triggers balancing at 4.125V, and auto-stops at the same point to avoid over-balancing and protect cell health.
Comprehensive Safety Features: Includes overcharge cutoff (4.25V), over-discharge cutoff (2.7V), short-circuit protection, overcurrent protection (75A), and automatic recovery for reliable performance.
Low Resistance & High Efficiency: Main circuit resistance ≤20mΩ minimizes heat, reduces energy loss, and enhances long-term reliability across different operating environments (-30°C to 80°C).
Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart).
